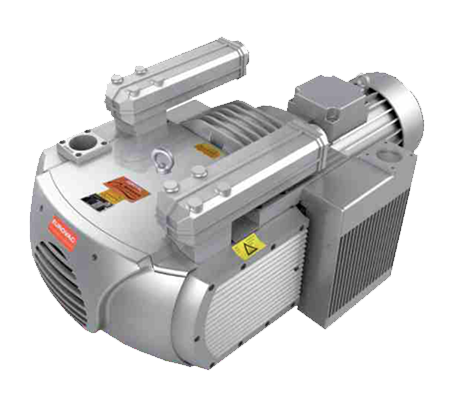

BVT250
Technical Data
| Type 型號 |
Air Flow 排氣量 (m3 / h) |
Motor Power 馬達功率(kw) |
Vacuum 真空值(bar) |
Fill Oil 壓力值(bar) |
Noise Level 噪音值[dB(A)] |
Speed 馬達轉速(RPM-1) |
Weight 重量(kg) |
Motor type 馬達型號 |
||||
| 50Hz | 60Hz | 50hz | 60Hz | 50hz | 60Hz | 50Hz | 60Hz | |||||
| BVT200 | 178 | 218 | 5.5 | 6.6 | -0.5 | +0.5 | 75 | 77 | 960 | 1150 | 280 | B5/350 |
| BVT250 | 250 | 300 | 7.5 | 9.0 | -0.5 | +0.5 | 81 | 81 | 960 | 1150 | 312 | B5/350 |

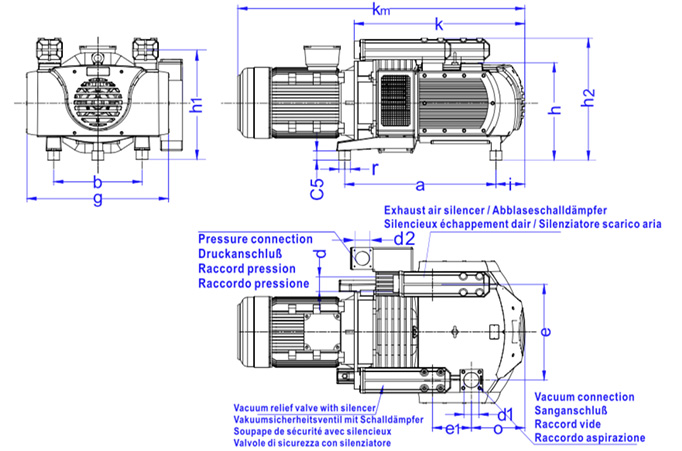

Mounting Dimensions
| Type | a | b | c5 | d | d1 | d2 | e | e1 | g | h | h1 | h2 | i | k | km | o | r | s |
| BVT200 | 645 | 380 | 40 | G2" | G2-1/2" | 60 | 423 | 216 | 612 | 420 | 475 | 527 | 125 | 684 | 1092 | 171.5 | 50 | M10 |
| BVT250 | 645 | 380 | 40 | G2" | G2-1/2" | 60 | 423 | 216 | 612 | 420 | 475 | 527 | 125 | 684 | 1092 | 171.5 | 50 | M10 |

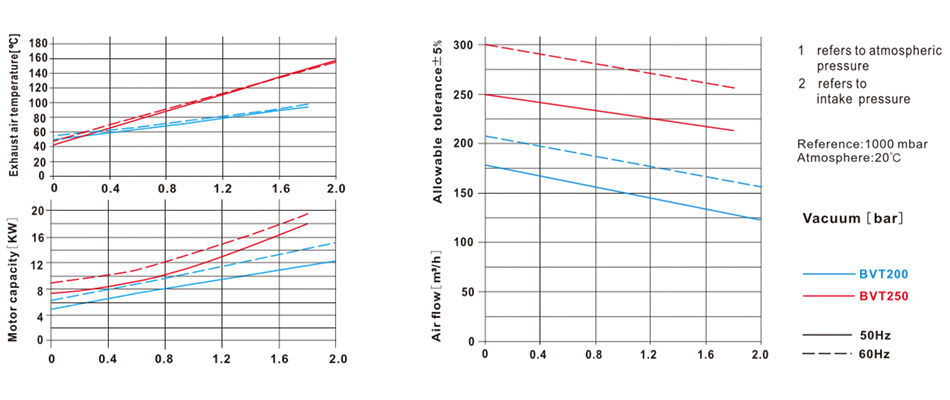

Performance Data
